- Wed Mar 16, 2016 9:42 am
#43307
Hi All,
I recently ordered this module from amazon:
http://www.amazon.co.uk/gp/product/B00U ... ge_o03_s00
And almost immediately regretted my purchase. This is because the pins out from the module don't match any of the pins out I have seen from any other modules and they sure don't match those described in the examples for this library:
https://github.com/nzmichaelh/Adafruit-ST7735-Library

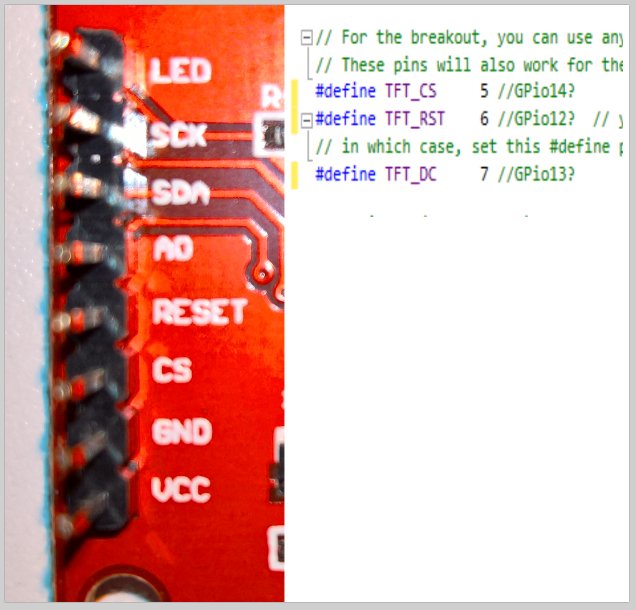

Here is a picture to illustrate what I am saying:
Can anybody shed any light on the correct pints to library mapping so that I can get the display working.
Cheers,
Mike
